Lab 1: Drawing a Simple Shape in WebGL#

For our first WebGL example we are going to display a simple triangle to the screen, this “hello triangle” is the computer graphics version of the classic “hello world!” example.

Setup HTML and JavaScript Files#

To start with we need two files, an HTML file that includes a <canvas> element which acts as a rendering surface for WebGL, and JavaScript file that controls everything that happens inside the canvas using the WebGL API.

These notes use a code-along principle in that as you work through these notes you will be tasked to create files, enter text and run code (the first of these tasks is below). Through working this way you will build an understanding of the concepts and techniques used in computer graphics. Where you are asked to enter code into your files, try to avoid the temptation of simply copying and pasting code, instead type out the code. Whilst this does have the risk of making typos and creating bugs, it does have an effect of helping you understand what each line of code is doing.

Task

Create a folder called 01 Hello Triangle inside which create an HTML file called index.html and enter the following code.

<!doctype html>

<html lang="en">
  <head>
    <meta charset="utf-8">
    <meta name="viewport" content="width=device-width, initial-scale=1">

    <title>Lab 1 - Hello Triangle</title>

    <style>
      html, head, body {
        margin: 0;
        padding: 25px;
        background-color: #000;
      }

      #demo-canvas {
        width: 800px;
        height: 600px;
        background-color: #8AcE00;
        image-rendering: crisp-edges;
      }
    </style>
  </head>
  <body>
    <canvas id="demo-canvas" width="800px" height="600px">
      HTML5 canvas not supported in your browser!
    </canvas>

    <script src="hello_triangle.js"></script>
  </body>
</html>

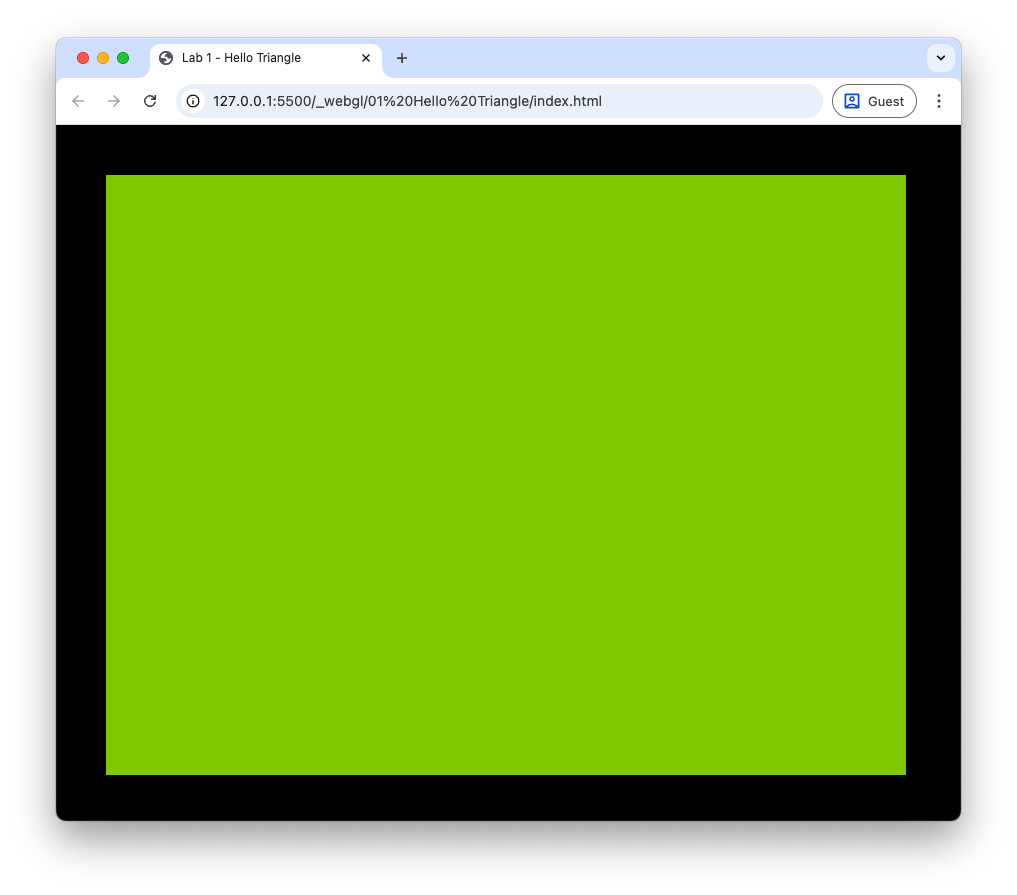

If you open your index.html file in a web browser (e.g., Chrome) you will see that we have created a <canvas> element that is 800 pixels wide by 600 pixels high that is a particularly lurid shade of green. The reason for this horrible colour is that we will be clearing the canvas in our WebGL app so if we see this green colour we know something has gone wrong.

../_images/01_Canvas.png

Fig. 1 The lurid green canvas element.#

Task

Inside your 01 Hello Triangle folder, create a JavaScript file hello_triangle.js that contains the following.

// Main function
function main() {

  // Setup WebGL
  const canvas = document.getElementById('demo-canvas');
  const gl = canvas.getContext('webgl2');
  if (!gl) return alert("WebGL not supported");

  // Clear the canvas
  canvas.width = canvas.clientWidth;
  canvas.height = canvas.clientHeight;
  gl.viewport(0, 0, canvas.width, canvas.height);
  gl.clearColor(0.2, 0.2, 0.2, 1.0); // dark gray background
  gl.clear(gl.COLOR_BUFFER_BIT);
}

try {
  main();
} catch (e) {
  console.error(`Uncaught JavaScript exception: ${e}`);
}

Here we have created our main function main() inside which we have set up the WebGL canvas. Some functions used here are defined below

gl.viewport(0, 0, canvas.width, canvas.height); : Defines the rectangular area of the canvas where rendering will take place that maps to the normalized device co-ordinates (-1 to 1 in the \(x\), \(y\) and \(z\) axes). Here our viewport fills the <canvas> element.

gl.clearColor(0.2, 0.2, 0.2, 1.0); : Defines the background colour. Colours are defined using RGBA values (Red, Green, Blue and Alpha) so here our background is dark grey.

gl.clear(gl.COLOR_BUFFER_BIT); : Clears the specified buffer, in this case it’s the colour buffer.

Refresh the browser window and you should still see that the horrible lurid green background. But hang on, haven’t we defined our background colour to be dark grey? The reason for this is that we haven’t embedded the JavaScript file into our HTML file.

Task

Edit the <body> tag near the bottom of the index.html file so that it looks like the following.

...
<body>
  <canvas id="demo-canvas" width="800px" height="600px">
    HTML5 canvas not supported in your browser! These demos will not work.
  </canvas>

  <script src="hello_triangle.js"></script>
</body>
...

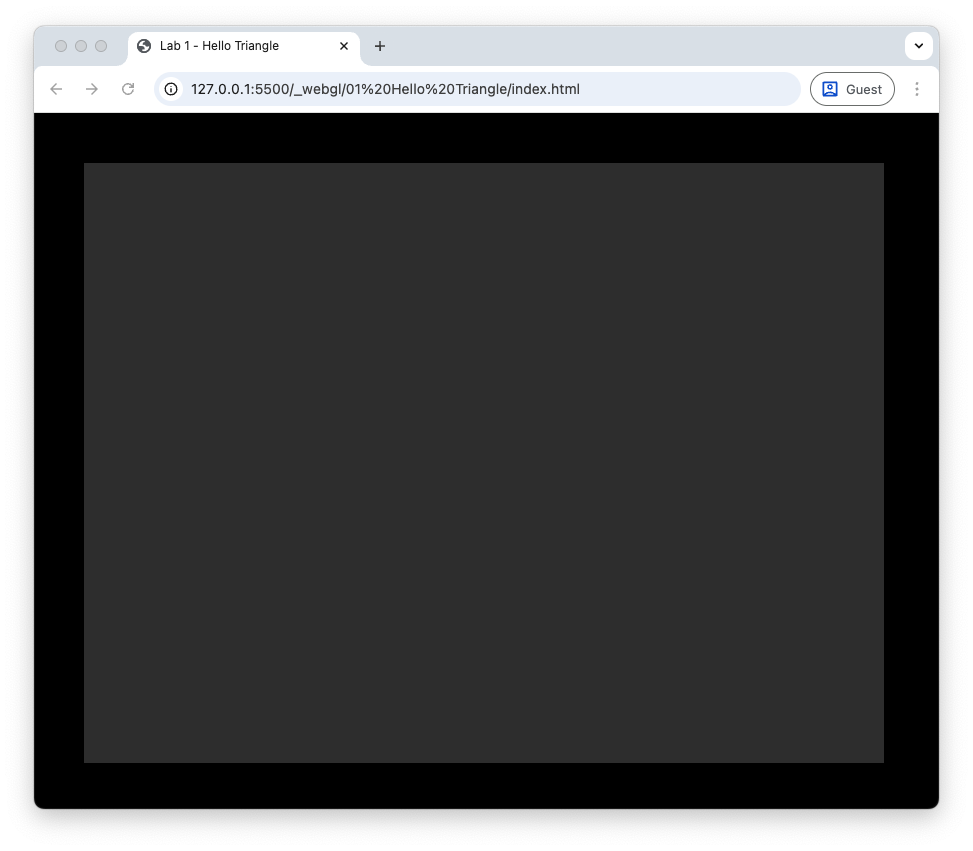

Now if you refresh your browser you should see a dark grey background. If something has gone wrong, and you still see the green background, open up the JavaScript console (if you are using Chrome then press CTRL + SHIFT + J or + + J on a Mac) and it should give you an indication of what has gone wrong. The life of a graphics programmer is mostly problem-solving and debugging, so get used to doing this.

../_images/01_colour_buffer.png

Draw a Red Triangle#

The first shape we are going to draw with WebGL is a red triangle. We start with a triangle because it is the fundamental building block of modern computer graphics. Every complex 3D model, character, environment, object etc. are ultimately made from many small triangles, and WebGL (like all graphics hardware) is designed to process triangles extremely efficiently.

Triangles are used in computer graphics for several important reasons:

  • A triangle is always flat. Any three points in space define a single plane, which means a triangle cannot become bent or warped. This makes it reliable for representing surfaces.

  • They are the simplest possible polygon. With only three vertices, triangles are easy for the GPU to transform, rasterise, and shade. All calculations, such as clipping and interpolation, are simpler with triangles than with more complex shapes.

  • Graphics hardware is optimized for triangles. Modern GPUs expect triangles as input, and even if you provide quads or other polygons, the hardware will convert them into triangles internally.

  • Any shape can be built from triangles. Complex models and smooth surfaces can be approximated by dividing them into many small triangles, a process known as tessellation. This allows triangles to represent everything from simple shapes to highly detailed 3D geometry.

  • Interpolation works cleanly across triangles. Colours, textures, normals, and depth all interpolate smoothly inside a triangle using barycentric co-ordinates, which ensures correct shading and rendering.

Define the Triangle Co-ordinates#

Our triangle will have co-ordinates at \((-0.5, -0.5, 0)\) (lower-left vertex), \((0.5, -0.5, 0)\) (lower-right vertex) and \((0, 0.5, 0)\) (top vertex).

../_images/01_Triangle.svg

Fig. 2 The vertex co-ordinates for the red triangle example.#

Task

Enter the following just before we clear the canvas.

// Define triangle vertices
const triangleVertices = new Float32Array([
  // x     y    z
   -0.5, -0.5, 0.0, // vertex 0       2
    0.5, -0.5, 0.0, // vertex 1     /   \
    0.0,  0.5, 0.0, // vertex 2    0 --- 1
]);

Here we have defined an array called triangleVertices containing 9 values for the co-ordinates of the 3 triangle vertices. WebGL works best with 32-bit floats, and the default JavaScript float precision is 64-bit, so we use the new Float32Array() command to convert these into 32-bit float array.

Create a Vertex Buffer Object (VBO) for the Triangle#

The data in the triangleVertices array is stored in the CPU (RAM) and not in the GPU. To move data across to the GPU we create a WebGL buffer object known as a Vertex Buffer Object (VBO) and copy in the data.

Task

Enter the following after we have defined the triangle vertices array.

// Create a VBO for the triangle
const VBO = gl.createBuffer();
gl.bindBuffer(gl.ARRAY_BUFFER, VBO);
gl.bufferData(gl.ARRAY_BUFFER, triangleVertices, gl.STATIC_DRAW);
gl.bindBuffer(gl.ARRAY_BUFFER, null);

The commands used here are explained below

const VBO = gl.createBuffer(); : Creates a buffer object on the GPU.

gl.bindBuffer(gl.ARRAY_BUFFER, VBO); : Binds our VBO to an array buffer so that WebGL knows where to send the data. The word bind in graphics programming means to make it the currently active resource for a particular purpose so subsequent WebGL operations affect it.

gl.bufferData(gl.ARRAY_BUFFER, triangleVertices, gl.STATIC_DRAW); : Copies the data from the triangleVertices array into the VBO which is the currently bound buffer. The gl.STATIC_DRAW input is a performance hint to WebGL, here we are saying that that triangle vertices will not change.

gl.bindBuffer(gl.ARRAY_BUFFER, null); : Here we unbind the current array buffer, so no subsequent commands will mistakenly affect it.

Write and Compile the Vertex Shader#

The next step is create a shader program that runs on the GPU and uses WebGL to determine which pixels on the display are to be rendered and in what colour. This shader program comprises two separate programs known as “shaders”: the vertex shader and the fragment shader. Shaders are written in GLSL (webGL Shader Language) which is similar to C.

The vertex shader is called once for each vertex and transforms the vertex co-ordinates from model space (the local object co-ordinates) to the clip space that defines the region that is displayed on the canvas. We have defined our triangle using co-ordinates between \(-1\) and \(1\), so they are already in clip space and our vertex shader just needs to output each vertex. The shader code for a simple vertex shader is

#version 300 es
precision mediump float;

in vec3 aPosition;

void main() {
  gl_Position = vec4(aPosition, 1.0);
}

This code is explained below

#version 300 es : Tells the shader we are using GLSL ES 3.00, the shader language used with WebGL 2.0.

precision mediump float; : Sets the default float precision to medium (16-bit).

in vec3 aPosition; : Tells the shader that we are inputting a 3-element vector for the vertex position. The a in aPosition is short for attribute.

gl_Position = vec4(aPosition, 1.0); : Outputs a 4-element vector for the clip space co-ordinates of the vertex (there reason why it’s a 4-element vector will be covered later when we look at transformations). The gl_Position variable is a required output of every vertex shader.

The simplest way of entering shader code into our JavaScript file is to define it as a multiline string.

Task

Add the following at the top of the hello_triangle.js file. Note the use of backticks `...` to define the string using a literal so that we can use a multiline string.

// Define vertex shader
const vertexShaderSource =
`#version 300 es
precision mediump float;

in vec3 aPosition;

void main() {
  gl_Position = vec4(aPosition, 1.0);
}`;

Now add the following after we have created the VBO.

// Compile vertex shader
const vertexShader = gl.createShader(gl.VERTEX_SHADER);
gl.shaderSource(vertexShader, vertexShaderSource);
gl.compileShader(vertexShader);
if (!gl.getShaderParameter(vertexShader, gl.COMPILE_STATUS)) {
  console.log(`Error compiling vertex shader:\n`, gl.getShaderInfoLog(vertexShader));
  gl.deleteShader(vertexShader);
}

As well as defining a string for the vertex shader code, we then create a vertex shader object, attach the shader code to it and compile it. There’s no easy way to check for errors in shader code, so it is good practice to do a check to see if it has compiled ok, if not a message is logged to the console.

Write and Compile the Fragment Shader#

The other shader we need to write is the fragment shader. This takes in information on a fragment that has been identified as being part of the primitive (i.e., triangle) and determines the colour that it will be rendered. We are going to render all fragments in the triangle as red, so the fragment shader code is as follows.

#version 300 es
precision mediump float;

out vec4 outColour;

void main() {
  outColour = vec4(1.0, 0.0, 0.0, 1.0);
}

This is similar to the vertex shader with a couple of exceptions. The vertex shader has a required output of gl_Position, so this doesn’t need to be declared, fragment shaders can have a number of outputs, so we need to declare these. Here we have declared an output of a 4-element vector using out vec4 outColour;. Within the main() function, we set the output vector to \((1, 0, 0, 1)\), i.e., all red with no blue or green components and the Alpha value is set to 1 so that it is opaque.

Task

Add the following after we have defined the vertex shader.

// Define fragment shader
const fragmentShaderSource =
`#version 300 es
precision mediump float;

out vec4 outColour;

void main() {
  outColour = vec4(1.0, 0.0, 0.0, 1.0);
}`;

And add the following after we have compiled the vertex shader.

// Compile fragment shader
const fragmentShader = gl.createShader(gl.FRAGMENT_SHADER);
gl.shaderSource(fragmentShader, fragmentShaderSource);
gl.compileShader(fragmentShader);
if (!gl.getShaderParameter(fragmentShader, gl.COMPILE_STATUS)) {
  console.log(`Error compiling fragment shader:\n`, gl.getShaderInfoLog(fragmentShader));
  gl.deleteShader(fragmentShader);
}

This code is very similar to the one used for the vertex shader. Later we will be using a helper function for DRY (Don’t Repeat Yourself).

Draw the Triangle#

So far we have done a fair bit of work creating a buffer object for the triangle vertices, written and compiled the vertex and fragment shader and linked these into a WebGL program. But we haven’t drawn anything yet! To do this we need to tell WebGL which shader program to use, tell it how to interpret the vertex data and then tell it to draw the triangle.

Task

Enter the following after we have cleared the canvas.

// Set the shader program
gl.useProgram(shaderProgram);

The gl.useProgram() function tells WebGL which shader program to use. It will use the currently selected program until told differently by another call to this function.

Earlier we created the VBO in the GPU and copied across our vertex data. We now need to tell WebGL where this data is and how to read it, so it can work its magic with the shaders.

Task

Enter the following after you have set the shader program.

// Tell WebGL how to read data from the vertex buffer
const positionLocation = gl.getAttribLocation(shaderProgram, "aPosition");
gl.enableVertexAttribArray(0);
gl.bindBuffer(gl.ARRAY_BUFFER, VBO);
gl.vertexAttribPointer(
  positionLocation, // index
  3,                // size
  gl.FLOAT,         // type
  false,            // normalized
  0,                // stride
  0);               // offset

The functions used here are explained below;

const positionLocation = gl.getAttribLocation(shaderProgram, 'aPosition'); : Gets the location of the aPosition attribute from the WebGL shader program.

gl.enableVertexAttribArray(0); : Enables a vertex attribute with location 0 so that WebGL knows to read data from the VBO and pass it to the vertex shader.

gl.bindBuffer(gl.Array_BUFFER, VBO); : Make the VBO the currently active buffer.

gl.vertexAttribPointer(positionLocation, 3, gl.FLOAT, false, 0, 0); : Tells WebGL how to read the data from the currently bound buffer and pass it to the vertex shader attribution 0. The inputs are explained in the table below.

Input

Description

index

Attribute location. We stored this in the positionLocation variable using the gl.getAttribLocation() function.

size

Number of components per vertex, We have 3D \((x, y, z)\) co-ordinates, so this is 3.

type

Data type. We are using floats.

normalized

Whether integer values should be mapped to \([0, 1]\) or \([-1, 1]\). Our vertex co-ordinates are in NDC, so we don’t need to do this.

stride

Number of bytes between first attribute of each vertex. Our data is tightly packed, so we can set the stride to 0, if the array buffer contained other data, e.g., colours, then we would need to determine the number of bytes between the first attribute, e.g., the \(x\) co-ordinates.

offset

Number of bytes from the start of the buffer the attribute of the first vertex. Our first vertex co-ordinate is the first element in the buffer, so this is 0.

The last thing we need to do is actually tell WebGL to draw the triangle.

Task

Enter the following after the you have told WebGL how to read the data from the vertex buffer.

// Draw the triangle
gl.drawArrays(gl.TRIANGLES, 0, 3);

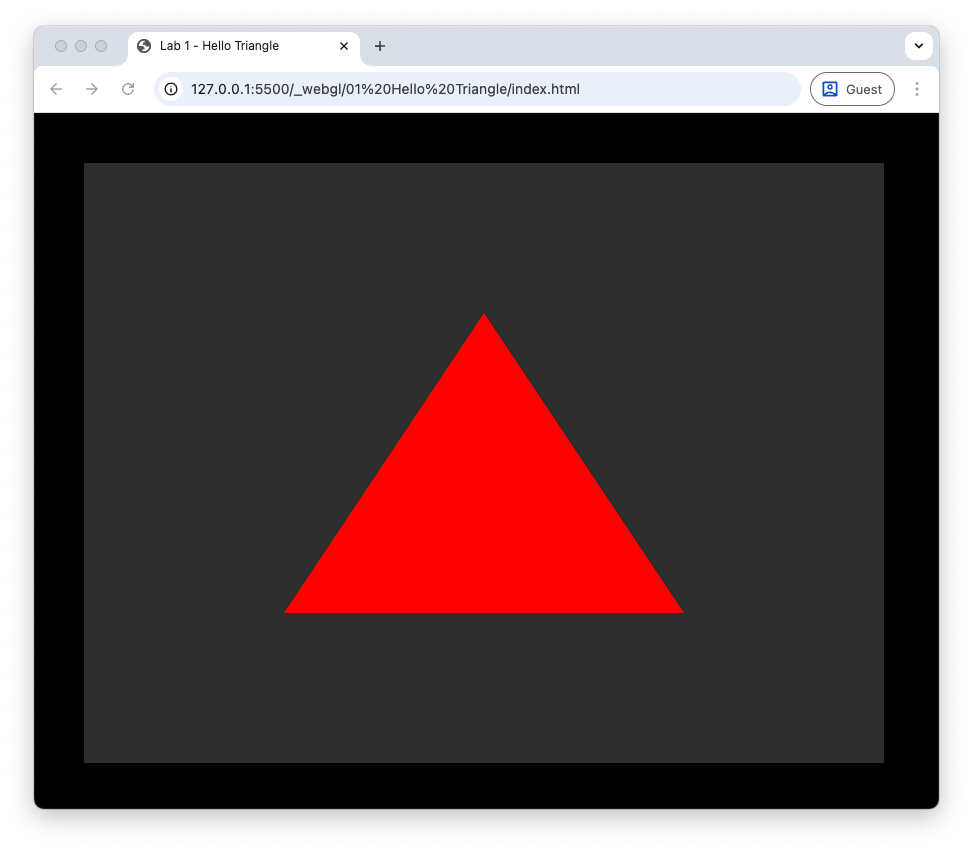

The gl.drawArrays() function tells the GPU to draw the primitives. The inputs are the type of primitive (we have a triangle), the index of the first vertex and the number of vertices to draw (we have one triangle, so we want to draw 3 vertices). Refresh your browser window, pray to the programming gods and if everything has gone to plan you should see the red triangle displayed on the canvas.

../_images/01_hello_triangle.png

Fig. 3 Hello triangle!#


Steps Used to Draw the Triangle#

Now that we have successfully drawn a triangle, let’s recap the steps we used.

  1. Define the Triangle Co-ordinates - we defined a 9-element array that contained the \((x, y, z)\) co-ordinates of the 3 triangle vertices.

  2. Create a Vertex Buffer Object (VBO) for the Triangle - the buffer objects are stored in the GPU so we needed to create one for the triangle and copy across the triangle co-ordinates so WebGL can work with them.

  3. Write and Compile the Vertex Shader - a vertex shader is used to transform the vertex co-ordinates to the clip space. The output is sent to the WebGL rasteriser that passes the fragment co-ordinates to the fragment shader.

  4. Write and Compile the Fragment Shader - a fragment shader is used to determine the colour that the fragment should be rendered on the display.

  5. Link the Shaders into a WebGL Program - the vertex and fragment shaders are linked into a single program that we tell WebGL to use to draw the triangle.

  6. Draw the Triangle - we need to tell WebGL how to access the data in the triangle buffer and instruct it to draw the triangle.


Shader Compiler Utility Functions#

Looking at our main() function we see that the code to compile and link the shaders is very similar for the vertex and fragment shaders. In the spirit of DRY, we will now write some utility functions to simplify the code.

Task

Create a new JavaScript files called webGLUtils.js within the 01 Hello Triangle/ folder and enter the following code.

// Compile shader helper function
function compileShader(gl, type, code) {
  const shader = gl.createShader(type);
  gl.shaderSource(shader, code);
  gl.compileShader(shader);

  if (!gl.getShaderParameter(shader, gl.COMPILE_STATUS)) {
    console.log(`Error compiling ${shaderType === gl.VERTEX_SHADER ? 'vertex' : 'fragment'} shader:\n`, gl.getShaderInfoLog(shader));
    gl.deleteShader(shader);
    return;
  }

  return shader;
}

// Link shaders into a shader program
function createShaderProgram(gl, vertexShaderSource, fragmentShaderSource) {
  const vertexShader = compileShader(gl, gl.VERTEX_SHADER, vertexShaderSource);
  const fragmentShader = compileShader(gl, gl.FRAGMENT_SHADER, fragmentShaderSource);

  if (!vertexShader || !fragmentShader) {
    return;
  }

  const shaderProgram = gl.createProgram();
  gl.attachShader(shaderProgram, vertexShader);
  gl.attachShader(shaderProgram, fragmentShader);
  gl.linkProgram(shaderProgram);

  if (!gl.getProgramParameter(shaderProgram, gl.LINK_STATUS)) {
    console.log('Error linking shader program:\n', gl.getProgramInfoLog(shaderProgram));
    gl.deleteProgram(program);
    return;
  }

  return shaderProgram;
}

This new file webGLUtils.js is used to contain any utility (helper) functions that are required for WebGL. Here we have defined the functions compileShader() which compiles a vertex or fragment shader depending on the type input, and createShaderProgram() that calls compileShader() to create the vertex and fragment shaders and links them to create a WebGL program. If you compare them to the equivalent code in the main() function you can see that they are similar. To enable our main file to use these functions we also need to add utils.js to the index.html file using a script tag.

Task

Add the following just before the hello_triangle.js script tag.

 <script src="webGLUtils.js"></script>

We can now tidy up the main() function and make a call to out new createShaderProgram() function.

Task

Cut and paste the vertexShaderSource and fragmentShaderSource to the top of the hello_triangle.js file. Delete the code in the main() function that compiles and links the shaders and replace it with the following.

// Create WebGL program
const shaderProgram = createShaderProgram(gl, vertexShaderSource, fragmentShaderSource);

Refresh your browser window and if everything has gone to plan you should see your red triangle as before. This effort is not wasted, we can now easily create WebGL programs from the source code without lots of copying and pasting of existing code. We will be using the webGLUtils.js and other JavaScript files to help organise and simplify our code in the future.


Exercises#

  1. Change the vertex shader so that the following results are achieved.

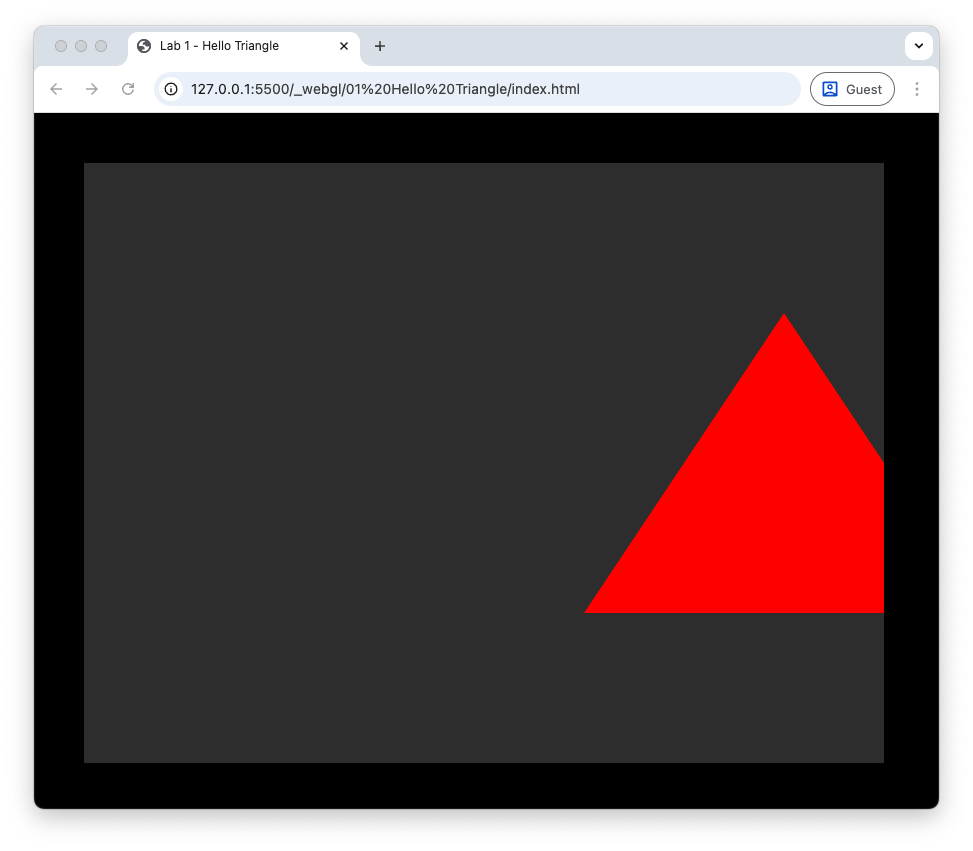

  (a) The triangle is shifted by 0.75 to the right.

../_images/01_ex1a.png
Hint

We can access individual elements of the aPosition vectors using aPosition.x, aPosition.y and aPosition.z – this is known as swizzling.

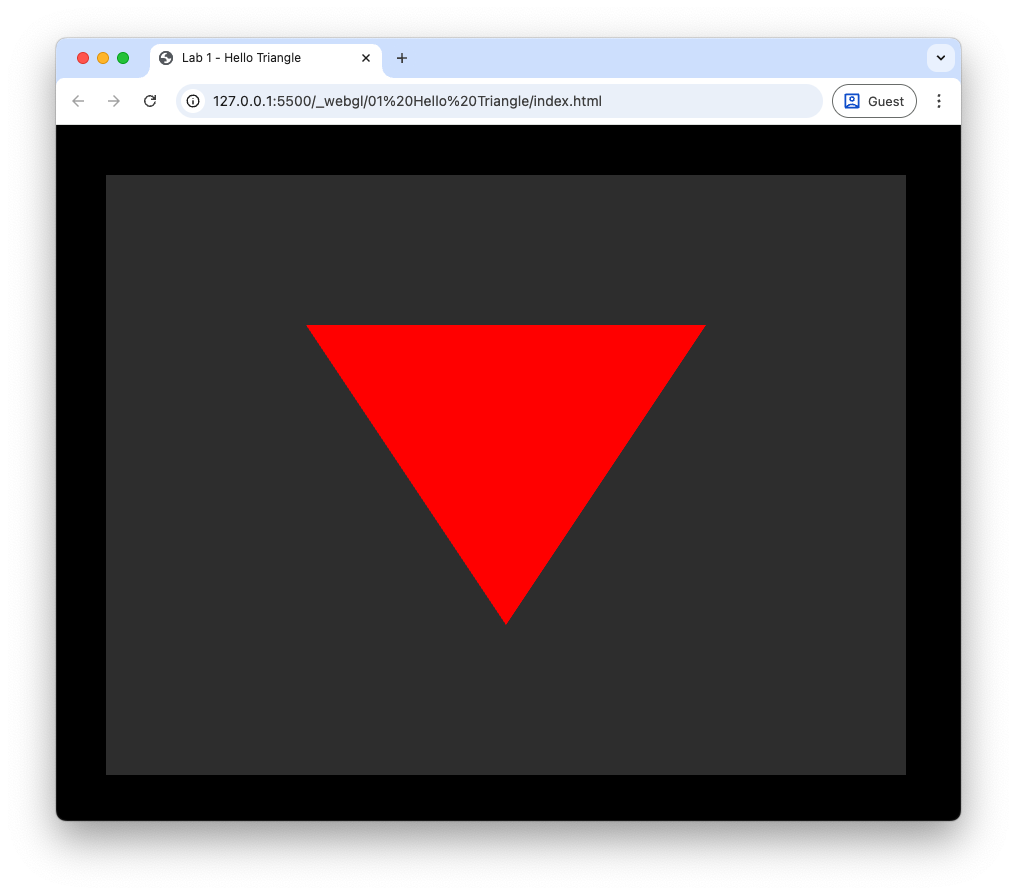

  (b) The triangle is drawn upside-down.

../_images/01_ex1b.png

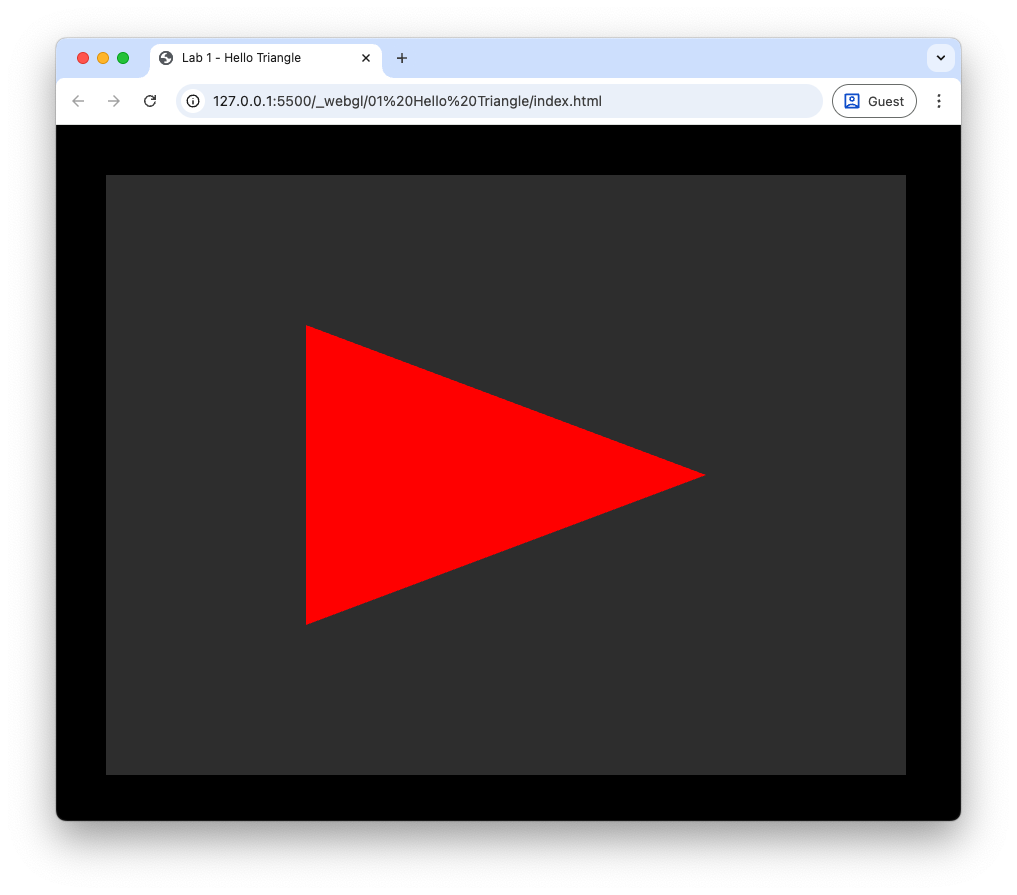

  (c) The \(x\) and \(y\) co-ordinates are swapped.

../_images/01_ex1c.png

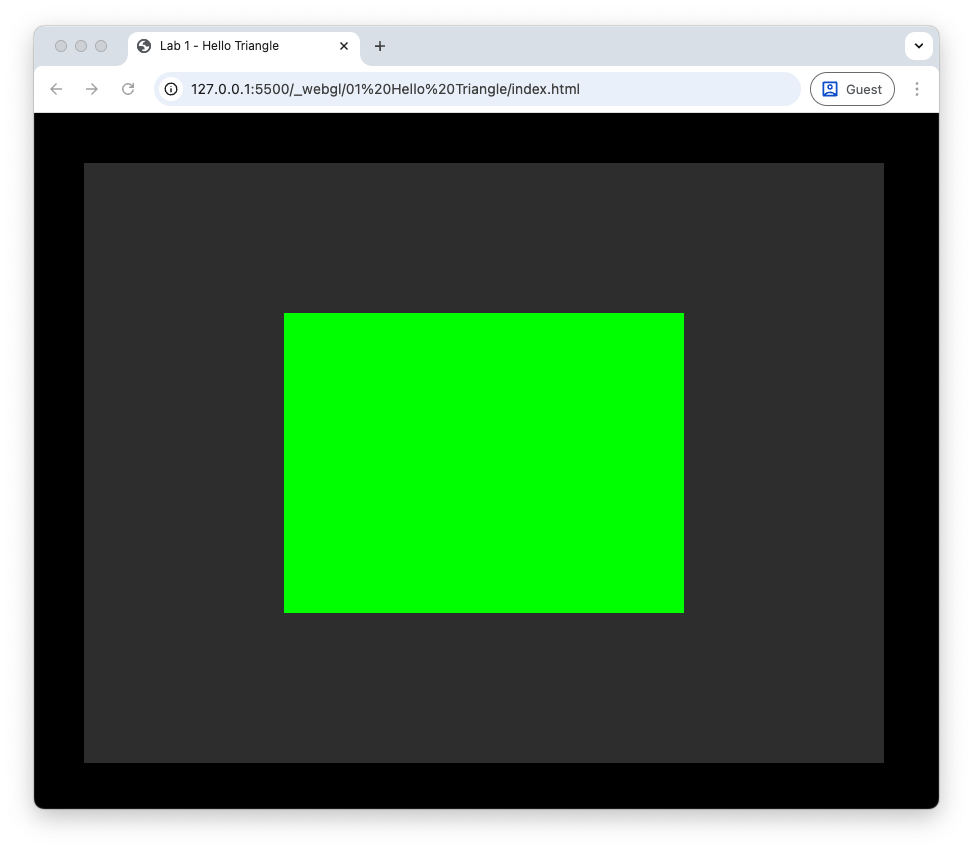

  1. Use two triangles to draw a green rectangle with lower-left vertex at \((-0.5, -0.5, 0)\) and the upper-right vertex at \((0.5, 0.5, 0)\).

../_images/01_ex2.png

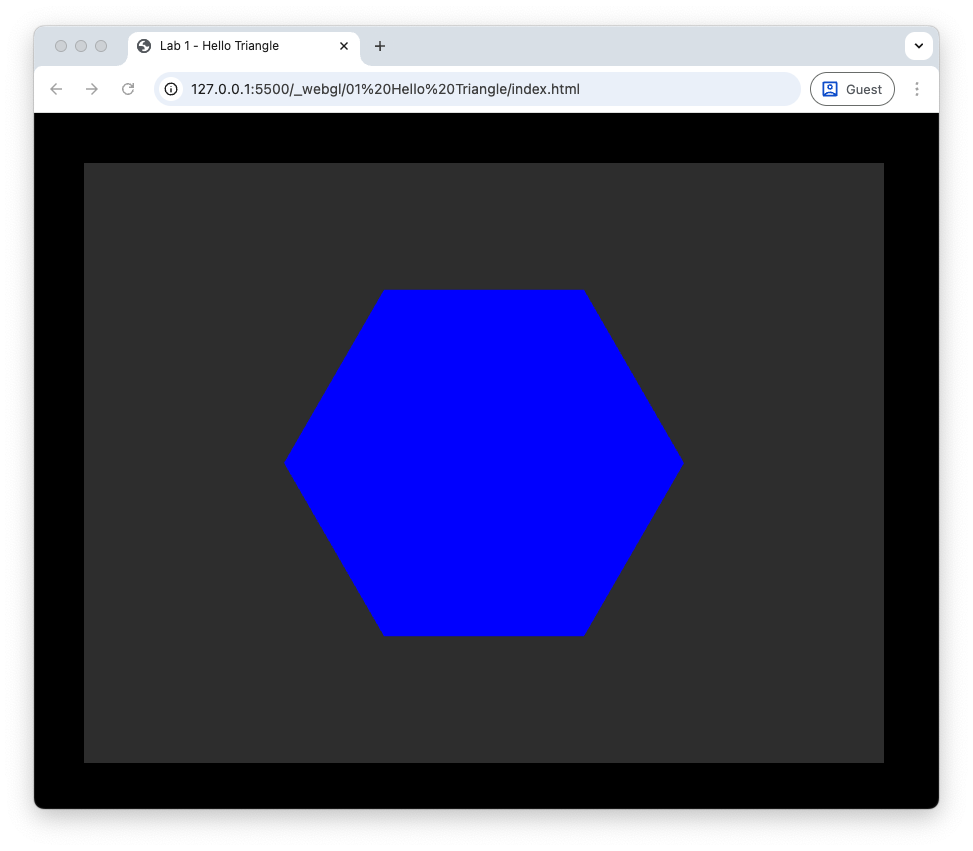

  1. Use triangles to draw a blue hexagon.

../_images/01_ex3.png
Hint

We can draw a hexagon using 6 triangles where each triangle has one vertex at \((0,0,0)\) and two outer vertices that lie on the circumference of a circle.

../_images/01_hexagon.svg

The \(x\) and \(y\) vertices of the two outer vertices are

\[\begin{split}\begin{align*} x_i &= r \cos(\theta_i), & y_i &= r \sin(\theta_i), \\ x_{i+1} &= r \cos(\theta_{i+1}), & y_{i+1} &= r \sin(\theta_{i+1}), \end{align*}\end{split}\]

where \(r\) is the radius and the angles \(\theta_i\) and \(\theta_{i+1}\) are calculated using

\[\begin{split}\begin{align*} \theta_i &= \frac{i2\pi}{6}, \\ \theta_{i+1} &= \frac{(i+1)2\pi}{6}. \end{align*}\end{split}\]

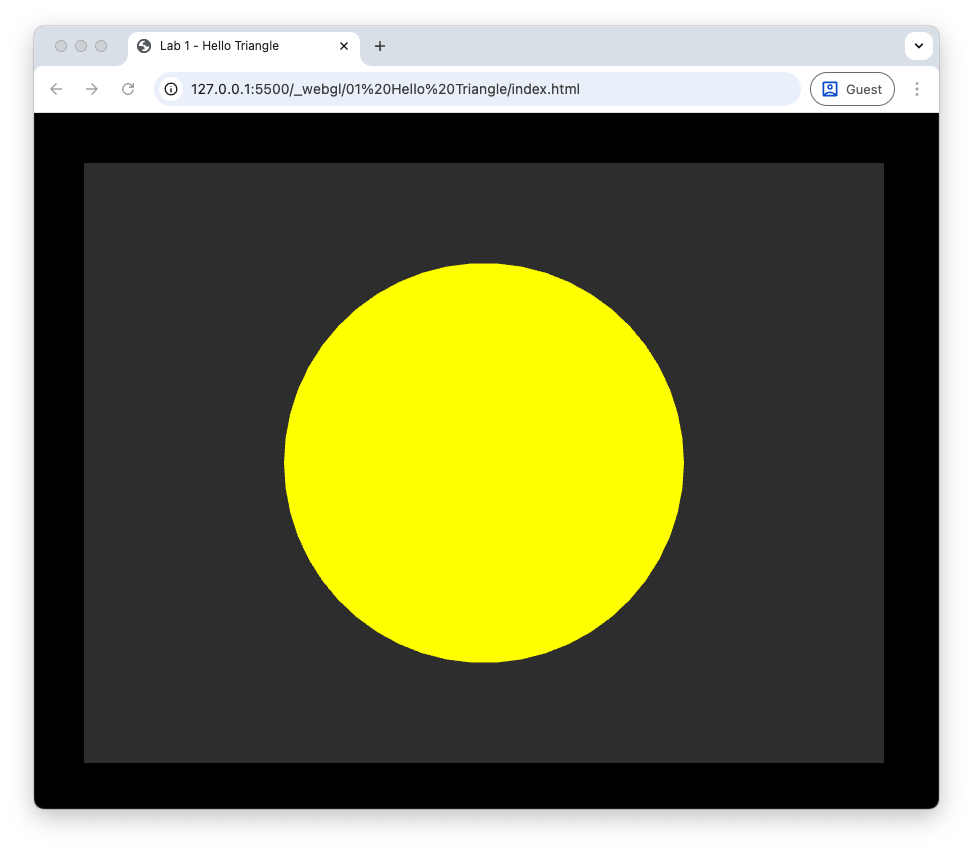

  1. Use lots of triangles to draw a yellow circle.

../_images/01_ex4.png
